Swimming Pool Construction Extras

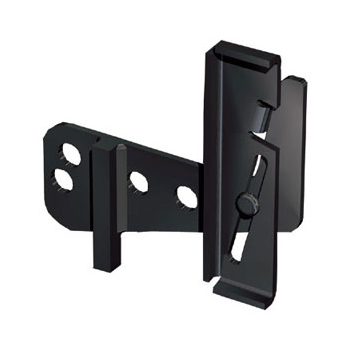

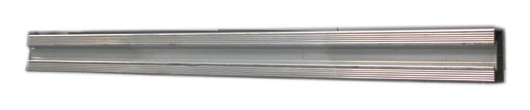

Adjustable Waler Bracket/Waler Board
  The adjustable waler system is attached to the concrete forms on the interior side of the pool, and placed at the first pin hole, 8" down from    the top of the panels.



By using the waler boards you will ensure the straightness of the wall.

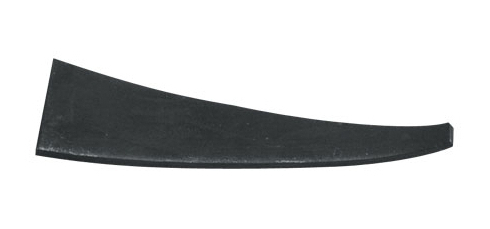

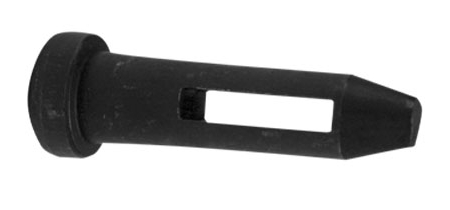

Standard Pin & Wedge
Round
tapered pins
have a milled
wedge slot. The shank is designed to eliminate pin sag and improve ease of stripping. Pins are made from steel and are heat-treated for long life.
Top

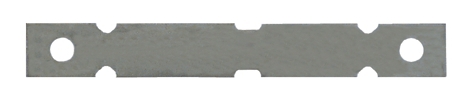

Standard Wall Ties
Swim-crete steel ties are manufactured to meet the requirements of today's
various pouring methods. We
continually perform quality
control testing to ensure
that all of our ties yield a
minimum pull strength
of 7,200#.

Breaking ties is
accomplished by striking
downward or sideways
with hammer or utilizing the
Swim-crete Tie Breaker Bar.
Top

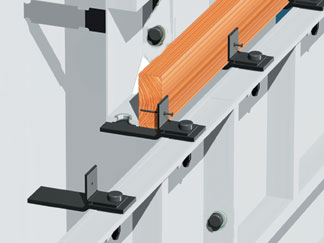

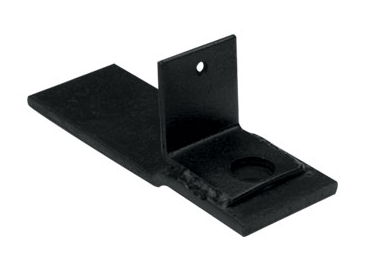

Saddle Bracket
  Unique bracket that produces 2" and 4" offset with straight wall forms. This ledge allows for the use of stone or brick for cascading/shear wall fountains and elevated retaining walls.

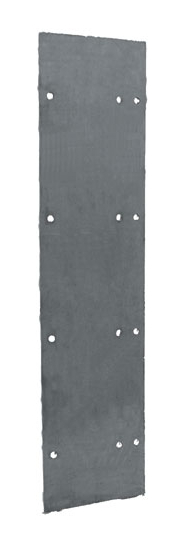

Blockoffs

The blockoff is used for blocking off wall ends.
Commonly used in elevated fountain or retaining
wall applications.
Top
Aluminum Wall Brace

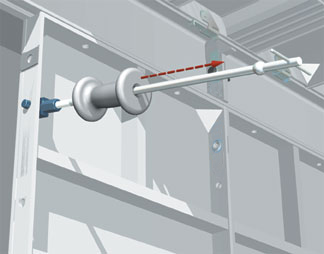

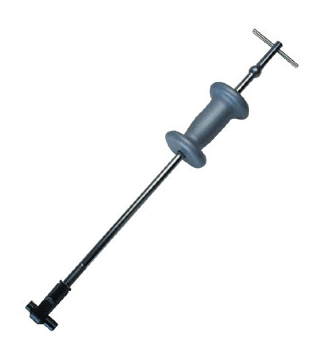

Slide Hammer
Turnbuckle
Available in 5'3" length
- Ideal for 42" and 48" walls
Ideal for removal of step forms.
The turnbuckle allows adjustment without moving brace. Easily attached to either lumber or metal pipe to manipulate wall braces that pin to the form.
Top
Parapet Brackets
The Parapet Bracket is used in suspending the formwork on one side of the wall from the opposite side. This is commonly used in all-concrete pool construction.
Top

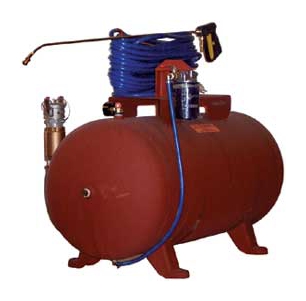

Spray Tanks

Compact 5 gallon hand tank allows for easy application to forms. Lightweight stainless steel with 4' hose and gun. Our 60 gallon spray tank comes complete with a 100' hose and a 4' wand. When ordering please specify spray tip size. Spray tanks should not be filled over 2/3 full. Both tanks are designed with safety filler caps. Replacement parts are available.
Top
Pouring Accessories

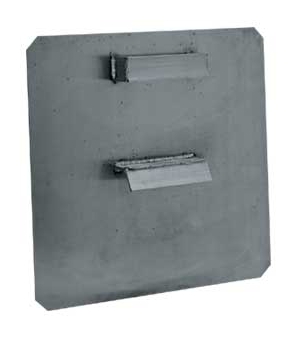

Lightweight, totally aluminum
board constructed with "L"
shaped bracket on back that
slips over the top of the form.
Naturally helps reduce spillage
and removal of form oil off forms
at discharge locations. Directs
uniform flow of concrete during placement.

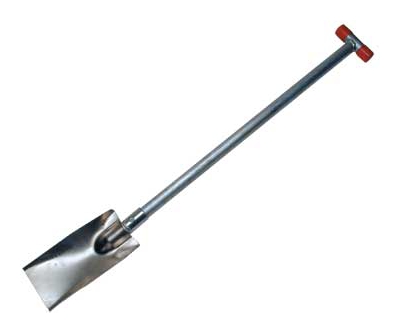

Fabricated with lightweight aluminum and made to drag concrete inside forms.

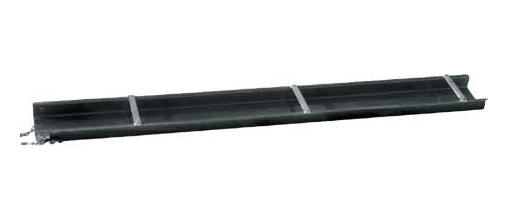

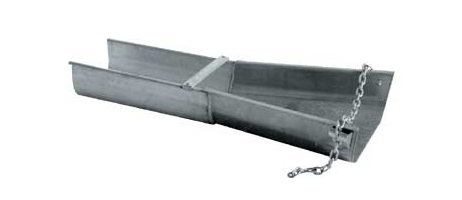

Swim-crete smooth flow aluminum chute is durable and lightweight. Our chutes are made of extruded heavy gauge aluminum and reinforced with cross beams and secured attachment chain. The aluminum chute weighs less than 5 lbs. per foot which makes it easy to handle by a single worker.
Top

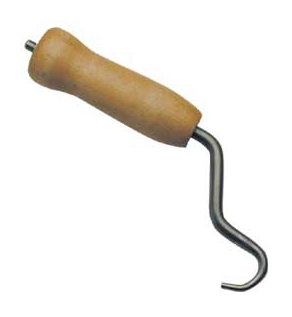

Tie Twister
Crete-Lease "Break-In" Aluminum Form Conditioner



Used to
tie wire ties
quickly and
easily. Works
with any size
wire tie.
"Seasons" new aluminum forms before first use with concrete...helps prevent concrete from sticking. Basic Use: To condition surfaces of new, unused aluminum forms before their first use. Crete-Lease "Break-In" oxidizes the aluminum surface to keep concrete from sticking. It Conditions forms even at 45°F, is not as messy as "liming," removes residual oils, and is biodegradable

Top

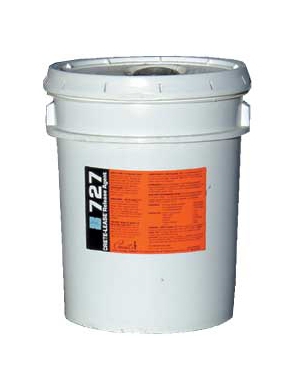

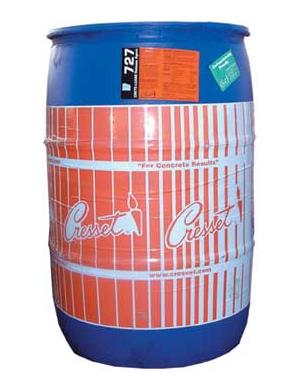

Crete-Lease 727 Release Agent

Crete-Lease 727 is a mineral based release agent that has been used for more than 25 years. It applies at low and high ambient temperatures and it exceeds all state and federal VOC regulations. Basic Use: Crete-Lease 727 permits easy stain-free removal of forms, form liners, pallets, etc. from
hardened concrete. It:

- Cuts form clean-up time up to 70% when properly applied.
- Can reduce bug holes on concrete surfaces.
- Does not interfere with adhesion of caulk, architectural   coatings, paint, sealers, and curing compounds on cured   concrete surfaces when properly applied.
- Works superbly on aluminum forms.
- Can be applied in sub-freezing or very hot temperatures.
- Reduces incidences of skin rash to an absolute minimum.
- Can produce both high visual impact (CCS 2) and typical   concrete surfaces (CCS 3, CCS 4, CCS 5).
- Even when applying 10 times more than required:
- No staining when cured at ambient temp.
- Concrete surfaces are not "killed".
- Does not cause efflorescence.
